Multi-Channel MOSFET

应用：工控、仪表、安防瞬态防护、手机、电源、无线充、电子烟、蓝牙耳机、汽车电子、移动电源、移动电源快充、动力电池、安防摄像头、蓝牙音箱、智能手环、lcm模组、移动POS机、网络机顶盒、液晶平板电视、锂电保护、行车记录仪等。

全国热线

0755-23761301

芯片参数 / PRODUCT PARAMETERS

Part Number	Type	Process	ESD	VDS	VGS	ID	VGS(TH)	RDS(mΩ)@VGS	RDS(mΩ)@VGS	RDS(mΩ)@VGS	RDS(mΩ)@VGS	Package
Part Number	Type	Process	Yes/No	V	V	A	V	10V Typ	10V Max	4.5V Typ	4.5V Max	Package
CJAC20N06D	Dual N-ch	Trench	No	60	±20	20	1.0~2.5	17	25	22	35	PDFNWB5×6-8L-A
2N7002DW	Dual-N	Trench	No	60	±20	0.115	1~2.5	1100	2500	1200	3000	SOT-363
2N7002KDW	Dual-N	Trench	Yes	60	±20	0.34	1~2.5	900	2500	1100	3000	SOT-363
2N7002V	Dual-N	Trench	No	60	±20	0.115	1~2.5	900	2500	1100	3000	SOT-563
CJ3134KDW	Dual-N	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	270	380	SOT-363
CJ3139KDW	Dual-P	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	430	520	SOT-363
CJL1206	Dual-P	Trench	No	-12	±8	-6	-0.5~-0.9	-	-	30	45	SOT-23-6L
CJL2301	Dual-P	Trench	No	-20	±8	-2.3	-0.4~-1	-	-	58	90	SOT-23-6L
CJL2623	Dual-P	Trench	No	-30	±20	-3	-1~-3	75	130	115	180	SOT-23-6L
CJMPD08	Dual-P	Trench	No	-12	±8	-3.6	-0.4~-1	-	-	35	60	DFNWB2×2-6L-A
CJMPD11	Dual-P	Trench	No	-20	±8	-2.3	-0.4~-1	-	-	70	110	DFNWB2×2-6L
CJQ4953	Dual-P	Trench	No	-30	±20	-5	-1.5	50	60	66	90	SOP8
CJQ7328	Dual-P	Trench	No	-30	±20	-8	-1~-2.5	18	21	27	32	SOP8
CJX3139K	Dual-P	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	450	520	SOT-563
CJX3152P	Dual-P	Trench	Yes	-20	±12	-0.66	-0.4~-1	-	-	450	700	SOT-563
CJAC0410	N-ch	Trench	No	100	±20	4	1~2.5	160	185	168	195	PDFNWB5×6-8L-A
CJAC0410	P-ch	Trench	No	-100	±20	-4	-1~-2.5	237	270	252	330	PDFNWB5×6-8L-A
CJ3439KDW	N-ch	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	260	380	SOT-363
CJ3439KDW	P-ch	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	430	520	SOT-363

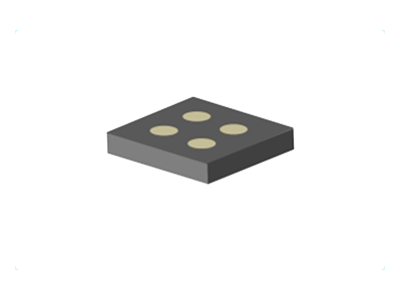

CJ4610SP	Dual-N	Trench	Yes	12	±12	8	0.5~1.3			19	25	CSPB1313-4
CJ4612SP	Dual-N	Trench	Yes	22	±12	6	0.5~1.3	-	-	30	36	CSPB1313-4
CJ4616SP	Dual-N	Trench	Yes	15	±12	8	0.5~1.3	-	-	14	18	CSPB1515-4
CJ7252KDW	N-ch	Trench	Yes	60	±20	0.34	1~2.5	900	5000	1100	5300	SOT-363
CJ7252KDW	P-ch	Trench	Yes	-50	±20	-0.18	-0.9~-2	4100	8000	5500	10000	SOT-363
CJDE8404	N-ch	Trench	No	30	±20	5	1~3	25	50	35	80	DFNWB3×3-8L-U
CJDE8404	P-ch	Trench	No	-30	±20	-4	-1~-3	35	50	53	80	DFNWB3×3-8L-U
CJAE2002	Dual-N	Trench	Yes	18	±12	15	0.4~1	-	-	4.4	5.5	DFNWB3×3-8L-J
CJBD3020	Dual-N	Trench	No	30	±20	20	1~3	9.5	15	14.5	20	PDFNWB3.3×3.3-8L-B
CJBE5005	Dual-N	Trench	Yes	20	±12	10	0.4~1	-	-	9.3	11.5	DFNWB3×3-8L-K
CJBM3020	Dual-N	Trench	No	30	±20	20	1~3	8.5	14	11.5	18	DFNWB3×3-8L-BE
CJCD2003	Dual-N	Trench	Yes	18	±12	10	0.4~1	-	-	6.2	7.2	DFNWB2×3-6L
CJCD2004	Dual-N	Trench	Yes	20	±12	10	0.4~1	-	-	7.3	9	DFNWB2×3-6L-C
CJCD2005	Dual-N	Trench	Yes	20	±12	8	0.4~1	-	-	9	12	DFNWB2×3-6L-C
CJCD2007	Dual-N	Trench	Yes	20	±12	8	0.4~1	-	-	12.5	15	DFNWB2×3-6L-C
CJX3439K	N-ch	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	-	380	SOT-563
CJX3439K	P-ch	Trench	Yes	-20	±12	-0.66	-0.35~-1.1	-	-	270	520	SOT-563
CJL6602	N-ch	Trench	No	30	±12	3.4	0.6~1.4	45	60	50	75	SOT-23-6L
CJL6602	P-ch	Trench	No	-30	±12	-2.3	-0.6~-1.4	75	135	95	185	SOT-23-6L
CJQ4606	N-ch	Trench	No	30	±20	6.9	1~3	19	28	28	42	SOP8
CJQ4606	P-ch	Trench	No	-30	±20	-6	-1~-3	29	36	47	55	SOP8
CJQ6601	N-ch	Trench	No	30	±12	5.8	0.7~1.4	19	35	21	40	SOP8
CJQ6601	P-ch	Trench	No	-30	±12	-4.2	-0.7~-1.3	-	65	-	75	SOP8
CJQ4503	N-ch	Trench	No	30	±20	6.9	1~3	10	28	14	42	SOP8
CJQ4503	P-ch	Trench	No	-30	±20	-6.3	-1~-3	16	36	25	55	SOP8
CJQ4614	N-ch	Trench	No	40	±20	8	1~2	16	19	24	29	SOP8
CJQ4614	P-ch	Trench	No	-40	±20	-7	-1~-2	30	35	40	45	SOP8
CJQ4559	N-ch	Trench	No	60	±20	4.5	1~3.5	40	58	55	72	SOP8
CJQ4559	P-ch	Trench	No	-60	±20	-3.5	-1~-3.5	60	80	92	150	SOP8
CJM7201	N-ch	Trench	No	60	±20	0.115	1~2.5	1000	7000	90	112	DFNWB2×2-6L-U
CJM7201	P-ch	Trench	No	-20	±8	-2.3	-0.4~-1	1000	7000	90	112	DFNWB2×2-6L-U
CJMNP517	N-ch	Trench	No	12	±12	6	0.5~1	18	24	21	27	DFNWB2×2-6L-U
CJMNP517	P-ch	Trench	No	-12	±12	-4.1	-0.5~-0.9	-	-	-	45	DFNWB2×2-6L-U
CJND2004	Dual-N	Trench	YES	20	±12	10	0.4~1			8	10.5	DFNWB5×2-6L
CJAC0610	N-ch	Trench	Yes	100	±20	10	1~2.5	85	100	110	160	PDFNWB5×6-8L-A
CJAC0610	P-ch	Trench	Yes	-100	±20	-6	-1~-2.5	150	210	160	220	PDFNWB5×6-8L-A
CJL2013	Dual-N	Trench	No	20	±10	6	0.5~1			12.2	14	SOT-23-6L
*CJL2311	N-ch	Trench	NO	20	±12	4	0.4~1			22	30	SOT-23-6L
*CJL2311	P-ch	Trench	NO	-20	±8	-2.3	-0.4~-1			75	90	SOT-23-6L
CJL2322	Dual-N	Trench	No	20	±12	4	0.4~1			22	30	SOT-23-6L
CJ4611SP	Single-N	Trrench	Yes	20	±12	7	0.5~1.3	-	-	22	29	CSPB1313-4
CJ4412SP	Dual-N	Trench	Yes	20	±12	5	0.5~1.3	-	-	30	36	CSPB1111-4
CJ4404SP	Dual-N	Trench	Yes	12	±12	6	0.5~1.3	-	-	22	27	CSPB1111-4
CJL8205A	Dual-N	Trench	NO	20	±10	6	0.6~1.5	-	-	23	30	SOT-23-6L
UM6K1N	Dual-N	Trench	Yes	30	±20	0.1	0.8~1.5	-	-	4000	8000	SOT-363
CJFB30H20	Quad-N	Trench	No	30	±20	20	1~3	8.5	12	12	18	DFNWB5×6-8L-E
CJMND202	Dual-N	Trench	No	20	±8	2.1	0.65~1.2	-	-	35	60	DFNWB2×2-6L-U
CJQ4800	Dual-N	Trench	No	30	±20	6.9	0.7~1.4	16	22	19	27	SOP8
CJQ4822	Dual-N	Trench	No	30	±20	8.5	1~3	11	16	13	26	SOP8
CJQ4824	Dual-N	Trench	No	30	±20	10	0.7~3	10.5	15	14.5	20	SOP8
CJQ4828	Dual-N	Trench	No	60	±20	4.5	1~3	40	56	55	77	SOP8
CJQ9926	Dual-N	Trench	No	20	±12	4.8	0.6~1.2	-	-	20	30	SOP8
CJQ05N10	Dual-N	Trench	No	100	±20	5	1~2	103	140	-	-	SOP8
CJS9004	Dual-N	Trench	Yes	20	±12	10	0.5~0.9	-	-	7.5	9	TSSOP8
CJS8820	Dual-N	Trench	Yes	20	±12	7	0.5~1.1	14	21	16	24	TSSOP8
CJS8810	Dual-N	Trench	Yes	20	±12	7	0.4~1	14	17	14.2	19	TSSOP8
CJS8804	Dual-N	Trench	Yes	20	±12	8	0.5~1	9.8	13	10.5	14	TSSOP8
CJS2019	Dual-N	Trench	No	20	±10	5	0.45~1.2	-	-	19.5	27	TSSOP8
CJS2016	Dual-N	Trench	No	20	±10	6	0.45~1.2	-	-	15.7	20	TSSOP8
CJS2013	Dual-N	Trench	No	20	±10	6	0.5~1	-	-	10.5	13.5	TSSOP8
CJX3134K	Dual-N	Trench	Yes	20	±12	0.75	0.35~1.1	-	-	270	380	SOT-563
CJL8820	Dual-N	Trench	Yes	20	±12	7	0.5~1.1	15	21	17	24	SOT-23-6L
CJL8810	Dual-N	Trench	Yes	20	±12	7	0.4~1	13.5	20	14.5	22	SOT-23-6L
CJL2019	Dual-N	Trench	No	20	±10	5	0.45~1.2	-	-	19.5	27	SOT-23-6L
CJL2016	Dual-N	Trench	No	20	±10	6	0.45~1.2	-	-	15.7	20	SOT-23-6L
